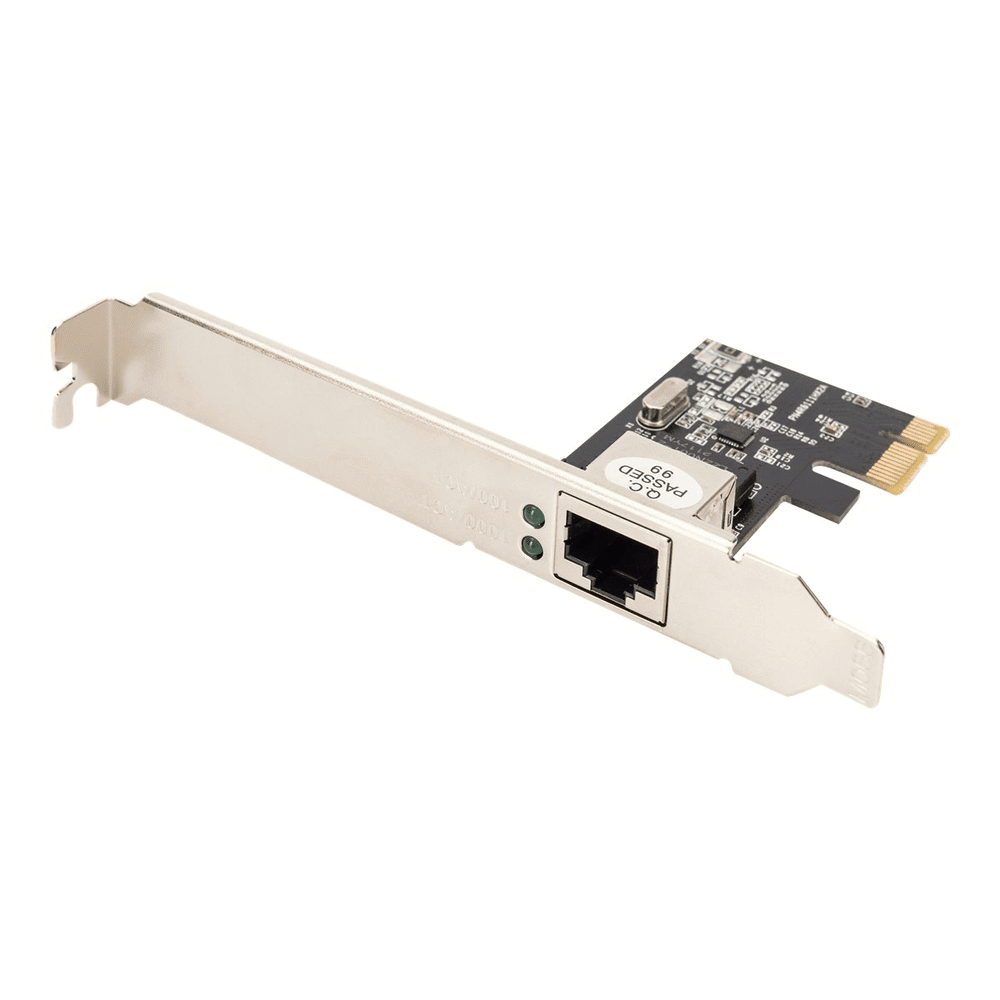

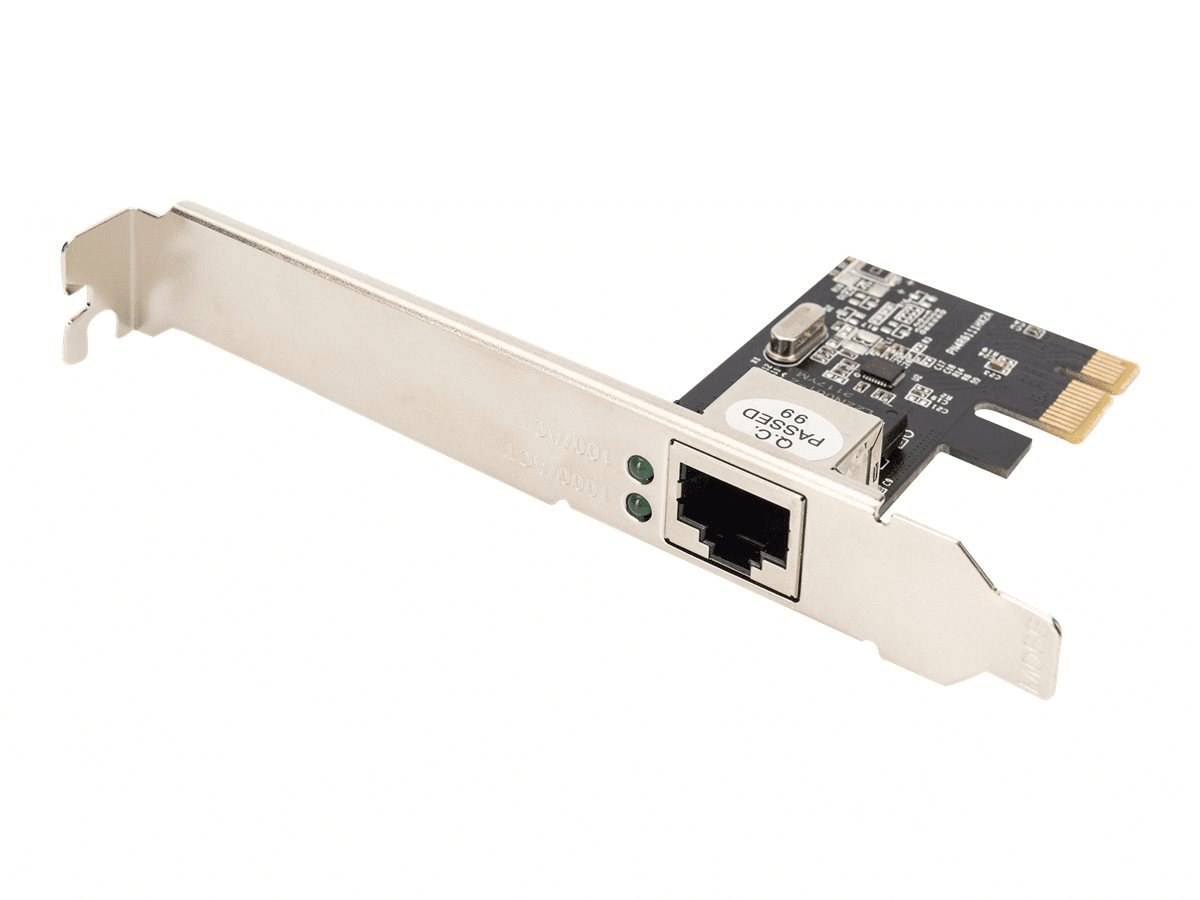

DIGITUS - Netzwerkadapter - PCIe Low-Profile - Gigabit Ethernet x 1
Gerätetyp | Netzwerkadapter |
Formfaktor | Plug-in-Karte - Low-Profile |
Schnittstellentyp (Bustyp) | PCI Express x1 |
PCI-Spezifikationsrevision | PCIe 1.1 |
Ports | Gigabit Ethernet x 1 |
Anschlusstechnik | Kabelgebunden |
Verdrahtungstyp | Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
Datenübertragungsrate | 1.25 Gbps |
Statusanzeiger | Link/Aktivität |
Leistungsmerkmale | Auto-Negotiation, Auto-Uplink (Auto MDI/MDI-X) |
Produktzertifizierungen | IEEE 802.2, IEEE 802.3, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ac, IEEE 802.3az |
Min Betriebstemperatur | 0 °C |
Max. Betriebstemperatur | 55 °C |
Zulässige Luftfeuchtigkeit im Betrieb | 0 - 85% RH (non-condensing) |
Schnittstellen | 1 x 1000Base-T - RJ-45 |
Software inbegriffen | Treiber & Dienstprogramme |
Erforderliches Betriebssystem | Linux, FreeBSD, Microsoft Windows Server 2008, VMware ESX, Microsoft Windows 7 / 8 / 8.1 / 10, Microsoft Windows Server 2016 |
Zubehör im Lieferumfang | Low profile Slotblech |
Transportbreite | 20 cm |
Transporttiefe | 14 cm |
Transporthöhe | 3.5 cm |
Transportgewicht | 150 g |
Prozessor | 1 x Realtek Semiconductor RTL8111H |
