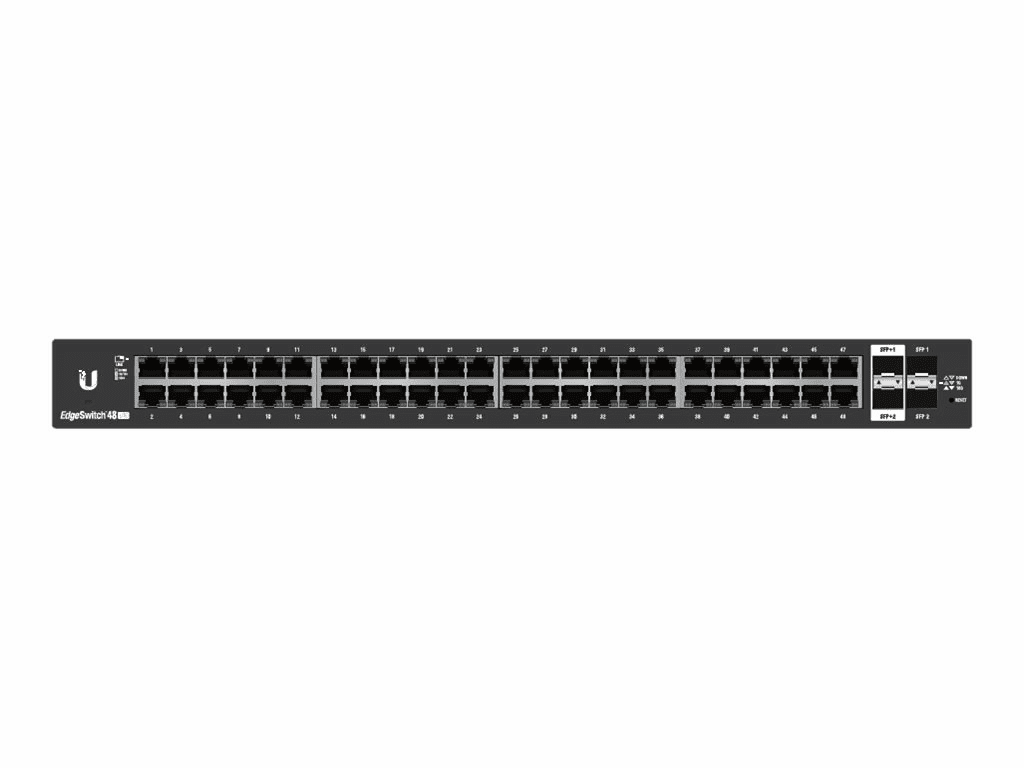

Ubiquiti EdgeSwitch ES-48-LITE - Switch - L3 - managed - 48 x 10/100/1000 + 2 x Gigabit SFP / 10 Gigabit SFP+ + 2 x SFP - an Rack montierbar
Gerätetyp | Switch - 48 Anschlüsse - L3 - managed |
Gehäusetyp | An Rack montierbar 1U |
Untertyp | Gigabit Ethernet |
Ports | 48 x 10/100/1000 + 2 x Gigabit SFP / 10 Gigabit SFP+ + 2 x SFP |
Größe der MAC-Adresstabelle | 8000 Einträge |
Jumbo-Rahmenunterstützung | Ja |
Routing Protocol | Statisches IP Routing, Policy-Based Routing (PBR) |
Remoteverwaltungsprotokoll | SNMP 1, SNMP 2, Telnet, SNMP 3, HTTP, SSH-2, CLI |
Leistung | Nicht-blockierende Switching-Kapazität: 70 Gbps Switching-Kapazität: 140 Gbit/s Übertragungsleistung: 104,16 Mpps |
Leistungsmerkmale | Flusskontrolle, BOOTP-Unterstützung, VLAN-Unterstützung, IGMP Snooping, Syslog-Unterstützung, Port-Spiegelung, DiffServ-Unterstützung, Broadcast Storm Control, IPv6-Unterstützung, Multicast Storm Control, Unicast Storm Control, Spanning Tree Protocol (STP)-Unterstützung, Rapid Spanning Tree Protocol (RSTP)-Unterstützung, Multiple Spanning Tree Protocol (MSTP)-Unterstützung, DHCP-Snooping, Unterstützung für Access Control List (ACL), Quality of Service (QoS), RADIUS-Unterstützung, Uni-Directional Link Detection (UDLD), LLDP-Support, Link Aggregation Control Protocol (LACP), Dynamic VLAN Support (GVRP), Class of Service (CoS), Generic Attribute Registration Protocol (GARP) |
Kapazität | VLAN-Unterstützung: 255 ACL-Regeln: 100 LAG-Gruppen: 6 |
Produktzertifizierungen | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ac, IEEE 802.1s, IEEE 802.3ak, IEEE 802.1ab (LLDP) |
Statusanzeiger | Anschluß-Übertragungsgeschwindigkeit, Link/Aktivität |
Min Betriebstemperatur | -5 °C |
Max. Betriebstemperatur | 40 °C |
Zulässige Luftfeuchtigkeit im Betrieb | 5 - 95 % (nicht kondensierend) |
Schnittstellen | 48 x 1000Base-T RJ-45 2 x Gigabit / 10Gbit LAN SFP+ 2 x 1000Base-X SFP 1 x Konsole RJ-45 |
Stromversorgungsgerät | Internes Netzteil |
Erforderliche Netzspannung | Wechselstrom 120/230 V (50 - 60 Hz) |
Leistungsaufnahme im Betrieb | 56 Watt |
Tiefe | 28.6 cm |
Höhe | 4.3 cm |
Gewicht | 3.56 kg |
Breite | 44.3 cm |
Produktzertifizierungen | IC, FCC, ETSI 300 019 |
