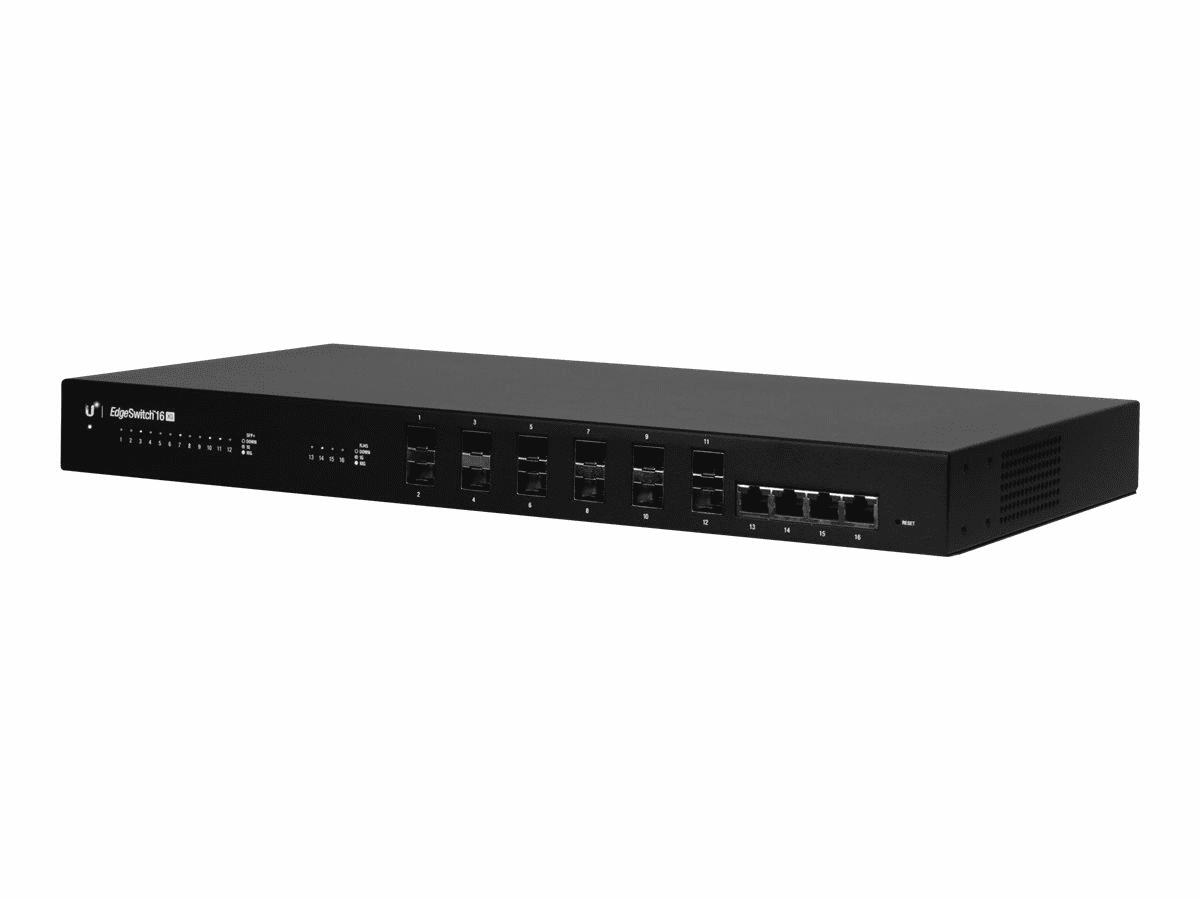

Ubiquiti EdgeSwitch ES-16-XG - Switch - L3 - managed - 12 x 10 Gigabit SFP+ + 4 x 10 Gigabit Ethernet - an Rack montierbar - AC 120/230 V/DC 16 - 25 V
Gerätetyp | Switch - 16 Anschlüsse - L3 - managed |
Gehäusetyp | An Rack montierbar 1U |
Untertyp | 10 Gigabit Ethernet |
Ports | 12 x 10 Gigabit SFP+ + 4 x 10 Gigabit Ethernet |
Leistung | Nicht-blockierende Switching-Kapazität: 160 Gbps Switching-Kapazität: 320 Gbit/s Übertragungsleistung: 238,1 Mpps |
Kapazität | VLAN-Unterstützung: 255 ACL-Regeln: 100 LAG-Gruppen: 6 |
Größe der MAC-Adresstabelle | 8000 Einträge |
Jumbo-Rahmenunterstützung | Ja |
Routing Protocol | Statisches IP Routing, Policy-Based Routing (PBR) |
Remoteverwaltungsprotokoll | SNMP 1, SNMP 2, Telnet, SNMP 3, HTTP, SSH, SSH-2, CLI |
Authentifizierungsmethode | TACACS+ |
Leistungsmerkmale | Flusskontrolle, BOOTP-Unterstützung, VLAN-Unterstützung, IGMP Snooping, Syslog-Unterstützung, Port-Spiegelung, DiffServ-Unterstützung, Broadcast Storm Control, IPv6-Unterstützung, Multicast Storm Control, Unicast Storm Control, Spanning Tree Protocol (STP)-Unterstützung, Rapid Spanning Tree Protocol (RSTP)-Unterstützung, Multiple Spanning Tree Protocol (MSTP)-Unterstützung, DHCP-Snooping, Unterstützung für Access Control List (ACL), Quality of Service (QoS), RADIUS-Unterstützung, Uni-Directional Link Detection (UDLD), LLDP-Support, Link Aggregation Control Protocol (LACP), Dynamic VLAN Support (GVRP), Class of Service (CoS), Generic Attribute Registration Protocol (GARP) |
Produktzertifizierungen | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3an |
Statusanzeiger | Anschluß-Übertragungsgeschwindigkeit, Link/Aktivität |
Min Betriebstemperatur | -5 °C |
Max. Betriebstemperatur | 40 °C |
Zulässige Luftfeuchtigkeit im Betrieb | 5 - 95 % (nicht kondensierend) |
Schnittstellen | 4 x Gigabit / 10Gbit LAN RJ-45 12 x Gigabit / 10Gbit LAN SFP+ 1 x Konsole RJ-45 |
Stromversorgungsgerät | Internes Netzteil |
Erforderliche Netzspannung | AC 120/230 V/DC 16 - 25 V (50/60 Hz) |
Leistungsaufnahme im Betrieb | 36 Watt |
Breite | 44.3 cm |
Tiefe | 22.1 cm |
Höhe | 4.3 cm |
Gewicht | 2.71 kg |
Produktzertifizierungen | IC, FCC, ETSI 300 019 |
